• YUAN JUN INDUSTRY CO., LTD

YCM-210G


♦ Auto-cut band saw, Max cutting capacity at 180 mm, miter cutting from 0° to 60° left.
♦ Quick clamping vice, equipped with quick short range sliding device. Max open 210 mm.
♦ Adjustment of the blade tension from the front side of the saw-frame, checked by a tension gauge at Blade tension 1500 kg/cm2.

♦ Blade guides with hard metal pads
♦ Start-button inside the operation handle
♦ Motor available in single phase DC-motor with variable speed or three phase AC-motor with 2 speeds.

♦ 3-way selector:
A. Manual cut, B. Fast drop of the saw-frame toward the material, and C. Automatic cut with adjustable down-feed rate.
♦ Cutting with cooling system.

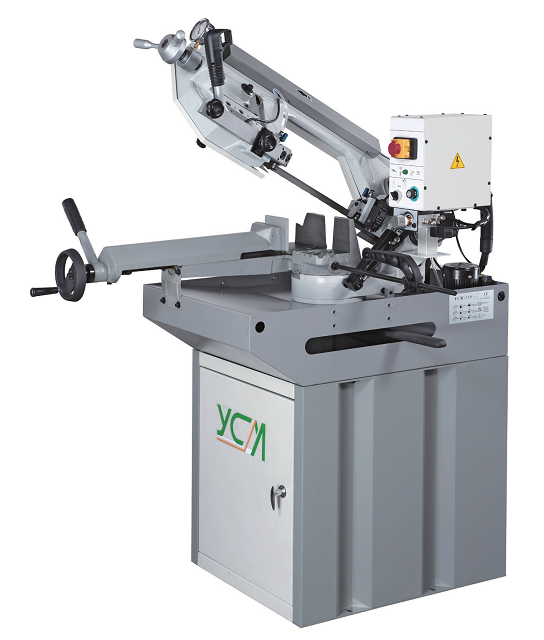

YCM-210G Double Cut


Metal Cutting Band Saw

YCM-210 Manual Cut


Metal Cutting Band Saw
Manual pull down saw-frame for cutting.

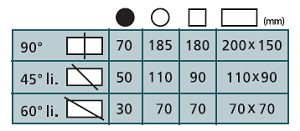

210G Chart



YCM-210G Double Cut Metal Cutting Band Saw
