YOUR SAWING MACHINE
YCM-125

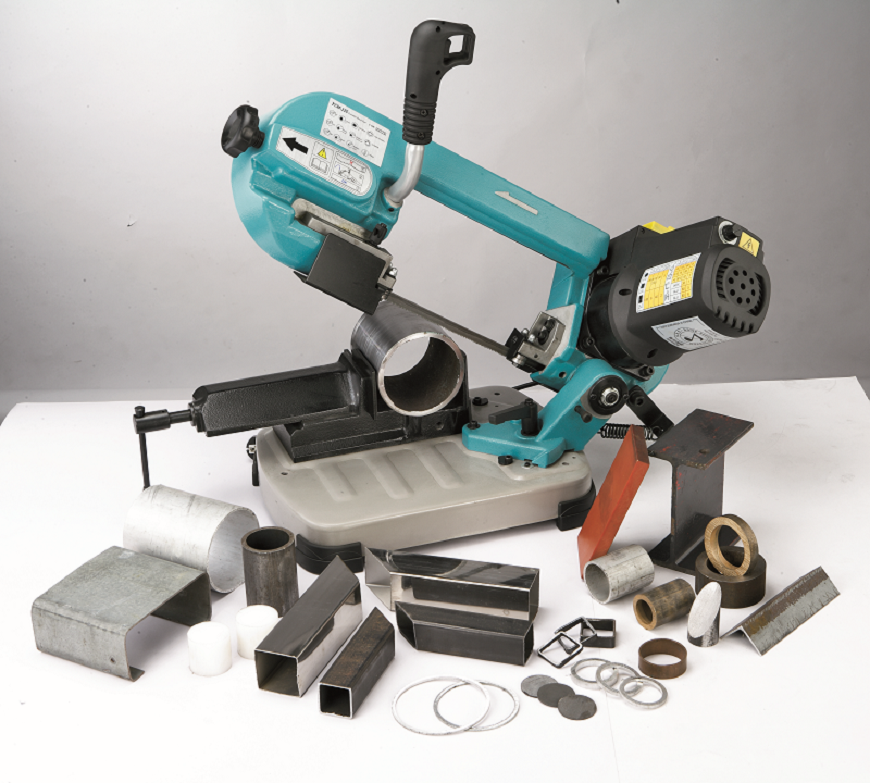

Portable Band Saw

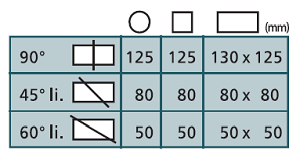

♦ Manual pull down cutting machine, miter cutting from 0°~60° left (YCM-125)
♦ Max Vice open 130 mm (YCM-125)
♦ Adjustment of the blade tension from the front side of the saw-frame
♦ Steady and sturdy aluminum saw-frame, pulleys with 160 mm diameter by cast iron.
♦ Start-button inside the operation handle
♦ Motor available in single phase DC-motor with variable cutting speed.
♦ Cut without lubrication.
♦ - Two protectors (one controlling amps, another controlling temperature of the motor)
> Anti-reset safety function.
> Steady and sturdy pressed steel base.
♦ Machine Weight 20kg (YCM-125)
Portable Band Saw
| Item | Motor | Blade Speed | Blade Size(mm) | Cooling | Dimension(mm) | N.W./G.W. | Packing(mm) | 20' load |
|---|---|---|---|---|---|---|---|---|
| YCM-125 | DC-1010W | 30~80 mpm | 1440x13x0.65 | NA | 650x310x450 | 19/21 kgs | 724x375x446 | 240 sets |
| Noted: AC-Motor with three phase, DC-Motor with single phase | ||||||||
