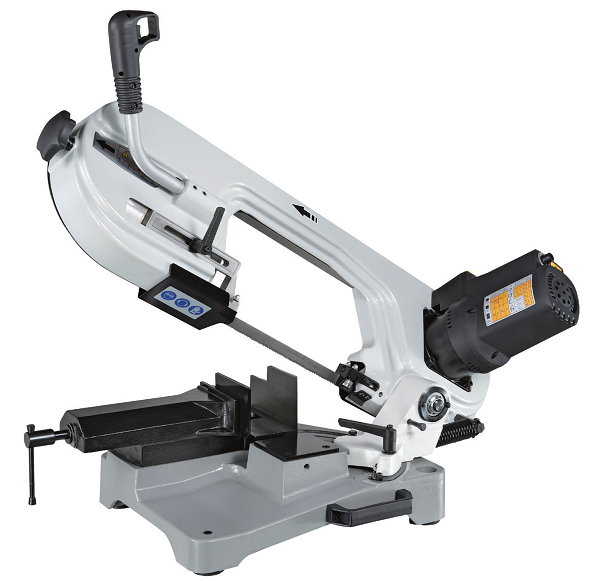

YCM-170
Portable Band Saw
♦ Manual pull down cutting machine.

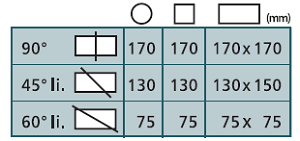

♦ Max cutting capacity at 170 mm. Max Vice open 175 mm. miter cutting from 0° to 60° left.
♦ Adjustment of the blade tension from the front side of the saw-frame.
♦ Steady and sturdy aluminum saw-frame, pulleys with 235mm diameter by cast iron.
♦ Start-button inside the operation handle
♦ Motor available in single phase DC-motor with variable cutting speed by 1650W.
♦ Cut without lubrication.
♦ Two protectors (one controlling amps, another controlling temperature of the motor)
> Anti-reset safety function.
> Steady and sturdy aluminum base.
♦ Machine Weight 35kg
Portable Band Saw
Item | Motor | Blade Speed | Blade Size(mm) | Cooling | Dimension(mm) | N.W./G.W. | Packing(mm) | 20' load |
---|---|---|---|---|---|---|---|---|
YCM-170 | DC-1650W | 30~80 mpm | 2030x20x0.9 | NA | 1120x430x525 | 35/38 kgs | 1040x490x580 | 100 sets |
Noted: AC-Motor with three phase, DC-Motor with single phase |
