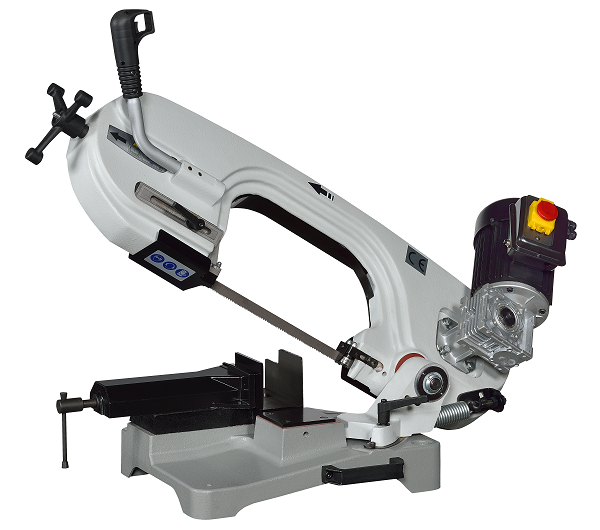

YCM-180
Portable Band Saw
♦ Manual pull down cutting machine.
♦ Max cutting capacity at 180 mm. Max Vice open 180 mm. miter cutting from 0° to 60° left.
♦ Adjustment of the blade tension from the front side of the saw-frame.
♦ Steady and sturdy aluminum saw-frame, pulleys with 235mm diameter by cast iron.
♦ Start-button inside the operation handle
♦ Motor available in single phase DC- motor with variable cutting speed.
♦ Cut without lubrication.
♦ Two protectors (one controlling amps, another controlling temperature of the motor)
> Anti-reset safety function.
> Steady and sturdy aluminum base.
♦ Machine Weight 40kg
Portable Band Saw
Item | Motor | Blade Speed | Blade Size(mm) | Cooling | Dimension(mm) | N.W./G.W. | Packing(mm) | 20' load |
---|---|---|---|---|---|---|---|---|
YCM-180 | AC: 1 phase, 1/2hp DC: 1 phase, 1650W | AC-Motor: 65 mpm DC-Motor: 30~78 mpm |
2085x20x0.9 | NA | 1100x500x900 | 190/215 kgs | 1150x570x600 | 80 sets |
Noted: AC-Motor with three phase, DC-Motor with single phase |
