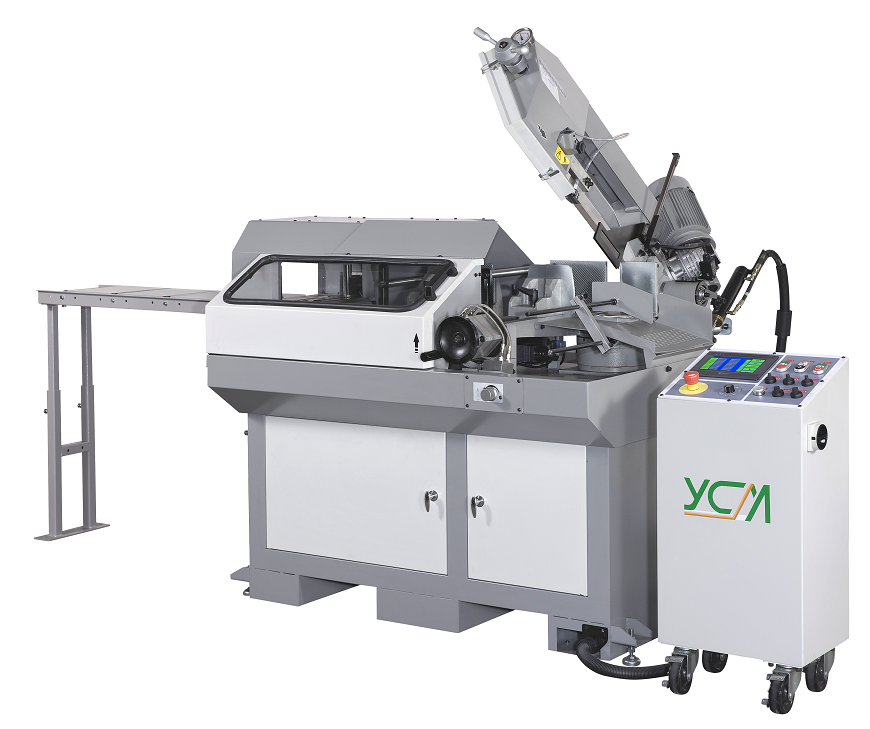

♦ A powerful automatic band saw for angular cuts, from 0° to 60° left.
♦ Angular cuts can be up to 45 degrees in the automatic cycle, up to 60 degrees in semi-automatic mode.
♦ Hydraulic system controls at both vices.
♦ Adjustment of the blade tension from the front side of the saw-frame, checked by a tension gauge at Blade tension 2000 kg/cm2.
♦ Blade guides with hard metal pads, additional bearing for blade alignment.

♦ Feeder movements on chrome bars, high-precision of the positioning due to the incremental feeding on recirculating ball screw combine industrial servo-motor. Automatic calculation of the blade thickness.
♦ Easy stop at 0, 45, 60° Left
♦ Cast-iron saw-frame with tubular section, pulleys 330mm diameter.
♦ Mechanical device (position sensor) that allows the saw frame to lower quickly toward the material and automatically detect the start-cut point.
♦ Tank with coolant electro-pump, hydraulic unit with oil.

♦ Easy to clean the chips with Moveable chips tank.
♦ Feeder vise with 300 mm opening, maximum moving length is 500 mm.
♦ Central control panel with big color touch screen (7")
♦ The control unit allows for programming of 20 programmers for quick setting of the feed length in repetitive production
♦ Connection for loading table with 2 vertical rollers
