YCM-300G


♦ Auto-cut band saw, Max cutting capacity at 260 mm, miter cutting from 0° to 60° left and 0° to 45° right.
♦ Quick clamping vice, equipped with quick short-range sliding device. Max open 300 mm.
♦ Adjustment of the blade tension from the front side of the saw-frame, checked by a tension gauge at blade tension 2000 kg/cm2.

♦ blade guides with hard metal pads
♦ Start-button inside the operation handle
♦ 3-way selector:
A. Manual cut, B. Fast drop of the saw-frame toward the material, and C. Automatic cut with adjustable down-feed rate.

♦ Cutting with cooling system.
♦ Join the "BTS" (Bearing Turn System) on the swivel head of machine, which could be turned the saw-arm by 2 fingers.
♦ Easy to clean the chips with Moveable chips tank.

YCM-300G Double Cut


Double Miter Metal Cutting Band Saw

YCM-300 Manual Cut


Manual Cutting Band Saw
Manual pull down saw-frame for cutting.

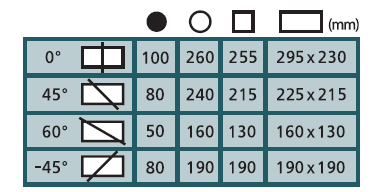

300G Chart

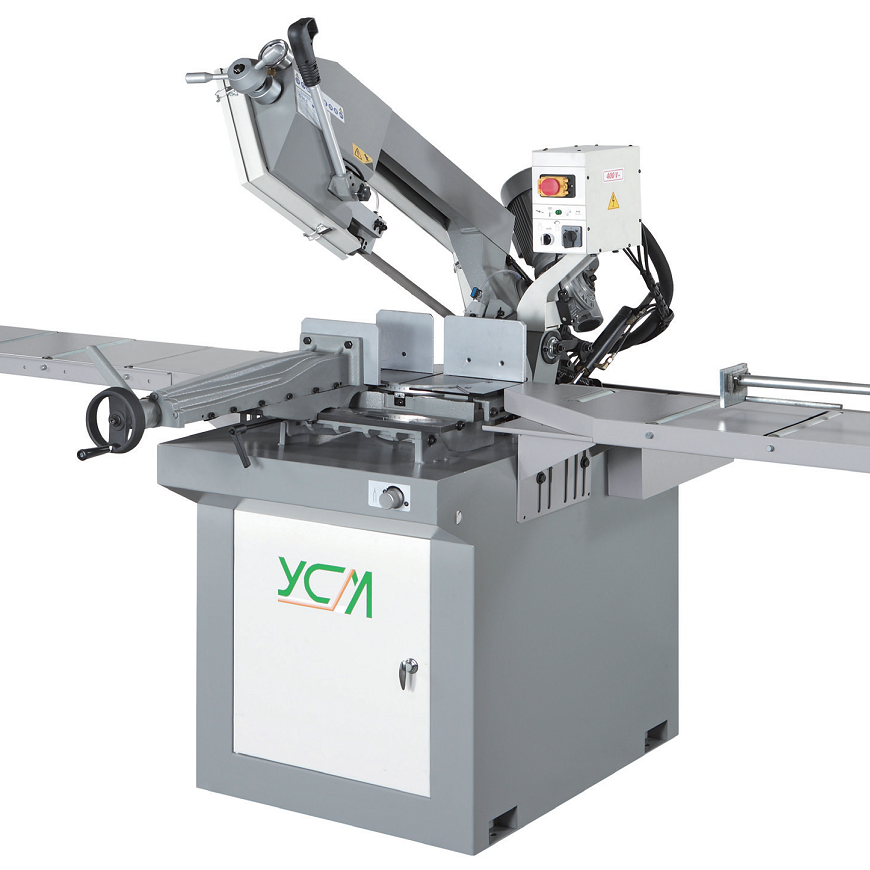

YCM-300G Double Miter Metal Cutting Band Saw
