• YUAN JUN INDUSTRY CO., LTD

YCM-420 SA


♦ Hydraulic semiautomatic bandsaw, miter cutting from 0° to 60° left and from 0° to 45° right.
♦ YCM-420SA Hydraulic vice by 420mm with adjustable pressure, free to move alongside the working table, with quick motion and clamping.
♦ Easy stops at 0, 30, 45, 60° left and 30, 45° right.
♦ Adjustment of the blade tension from the front side of the saw-frame.

♦ Blade guides with hard metal pads, additional bearing for blade alignment
♦ Cast-iron saw-frame with tubular section, pulleys 400mm diameter
♦ Mechanical device (position sensor) that allows the saw-frame to lower quickly toward the material and automatically detect the start-cut point.
♦ Connection element for loading table equipped with roller, 400mm wide

♦ Adjustable bar-stop, blade-cleaning brush, bi-metal blade with 34 mm saw blade.
♦ Floor stand with removable chip collector tank.
♦ Tank with coolant electro-pump, hydraulic unit with oil.
♦ Join the "BTS" (Bearing Turn System) on the swivel head of machine, could turn the saw-arm by 2 fingers.

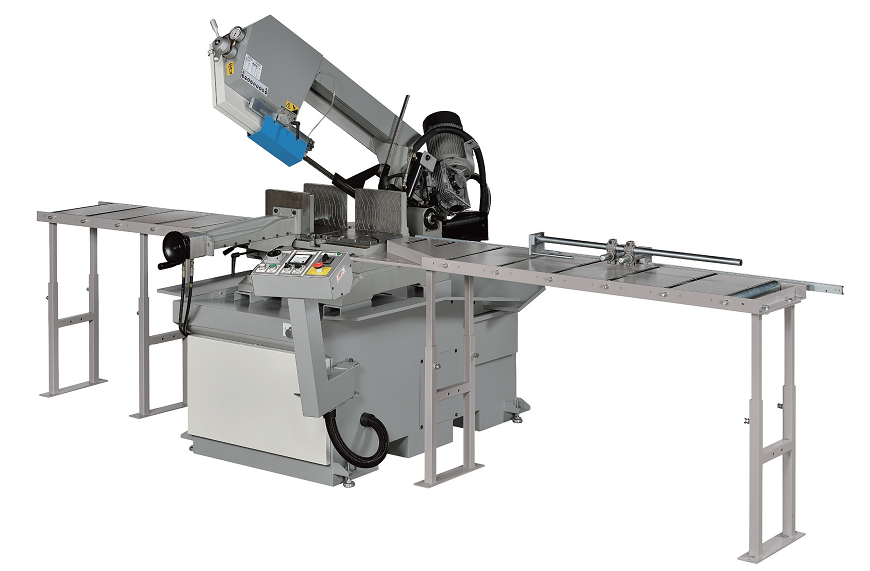

YCM-420 SA


Semiautomatic Metal Cutting Band Saw

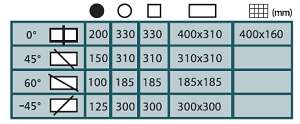

420SA Chart



YCM-420SA Semiautomatic Metal Cutting Band Saw
